YORKWATT® Happy Power
Photovoltaic Modules
Tiger Pro 72HC

Product Advantages
Multi Busbar Technology

Better light trapping and current collection to improve module power output and reliability.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance.

Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Product Guarantee

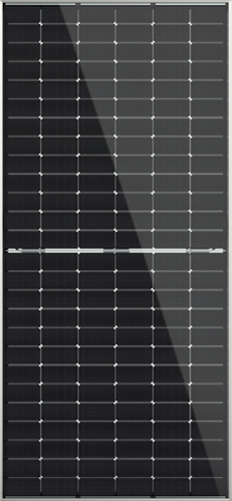

Tiger Pro 72HC
Monofacial 535-555W

Cell Number: 144 (6×24)
Dimensions: 2278×1134×35mm
Maximum Power: 535-555W
Module efficiency: 21.2%

Tiger Neo 72HC

Product Advantages
Multi Busbar Technology

Better light trapping and current collection to improve module power output and reliability.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance.

Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Product Guarantee

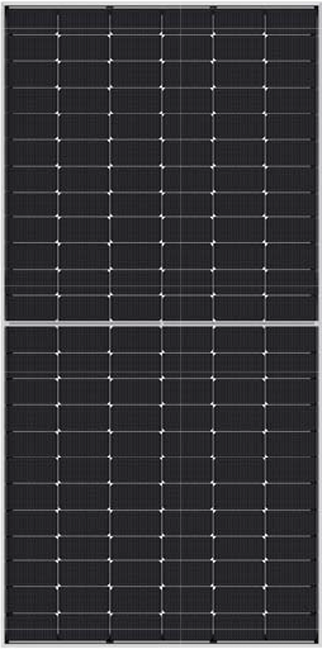

Tiger Neo 72HC
Monofacial 555-575W

Cell Number: 144 (6×24)
Dimensions: 2278×1134×35mm
Maximum Power: 555-575W
Module efficiency: 21.2%

166 Mono HC Series
Product Advantages
High Power Output

Compared to 158.75mm module, the power output can increase 25W-30W

High Reliability

Passed 3*IEC standard test

Low Hot-spot Risk

1/2 current, reducing the hot spot temperature

Excellent Loading Capability

2400pa wind loads, 5400Pa snow loads, 8000Pa extra support

Low NMOT

As low as 43℃, improving the power generation efficiency

Half Cell, 5BB PERC Technology

Series-then-parallel cell connection design, more reliable soldering technology

Product Guarantee

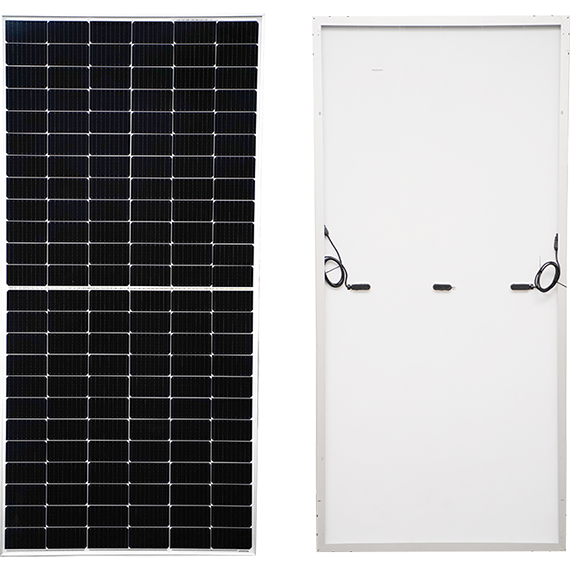

166 Mono HC Series
156HC 435-460W

Cell Number: 156 (6 × 26)
Dimensions: 2278 × 1084 × 40mm
Maximum Power: 470~490W

144HC 435-460W

Cell Number: 144 (6 × 24)
Dimensions: 2108 × 1048 × 35mm
Maximum Power: 435~460W

120HC 355-380W

Cell Number: 120 (6 × 20)
Dimensions: 1756 × 1039 × 35mm
Maximum Power: 355~380W

144HC 430-450W BG

Cell Number: 144 (6 × 24)
Dimensions: 2095 × 1039 × 30mm
Maximum Power: 430~450W

182 Mono HC Series
Product Advantages
10BB Half-cut Cell Technology

New circuit design, lower internal current, lower Rs loss Ga dopped wafer,attenuation<2%(1st year) / ≤0.55%(Linear)

Significantly Lower The Risk Of Hot Spot

Special circuit design with much lower hot spot temperature

Lower LCOE

2% more power generation, lower LCOE

Excellent Anti-PID Performance

2 times of industry standard Anti-PID test by TUV SUD

IP68 Junction Box

High waterproof level

Product Guarantee

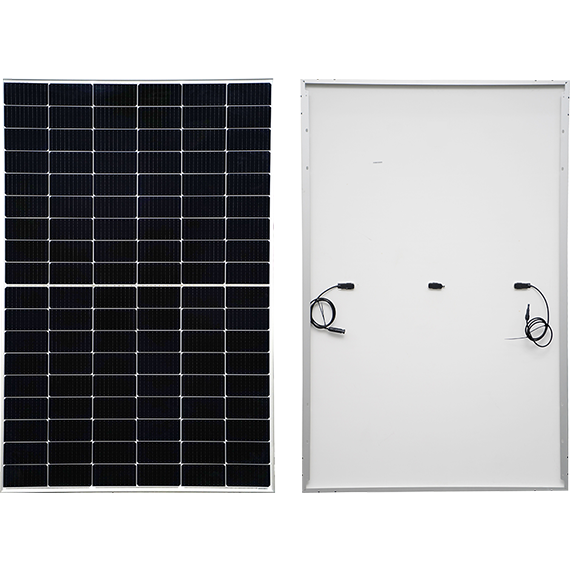

S182 Mono HC Series
182-156HC 575-595W

Cell Number: 156 (6 × 26)
Dimensions: 2472 x 1135 x 35mm
Maximum Power: 575-595W

182-144HC 530-550W

Cell Number: 144 (6 × 24)
Dimensions: 2279 x 1134 x 35mm
Maximum Power: 530-550W

182-120HC 435-455W

Cell Number: 120 (6 × 20)
Dimensions: 1909 × 1134 x 35mm
Maximum Power: 435-455W

182-108HC 390-410W

Cell Number: 144 (6 × 24)
Dimensions: 1724 x 1134 x 35mm
Maximum Power: 390-410W
