HappyPoweMax is an integrated storage system developed to meet the needs of Utility or large-scale C&I storage market. It has integrated battery cabinets, BMS, monitoring system, specific fire suppression system, HVAC, PCS and EMS. PowerMass suits thermal power plants, wind farms, solar farms or islands, schools, institutes, factories, load centers and more.
Multiple units can be easily combined to deliver the required power
All-round and multi-level battery protection strategies and trouble-shooting measurements are in place
Deployed fast, easily for transportation & installation with lower infrastructure construction cost and short construction timeline

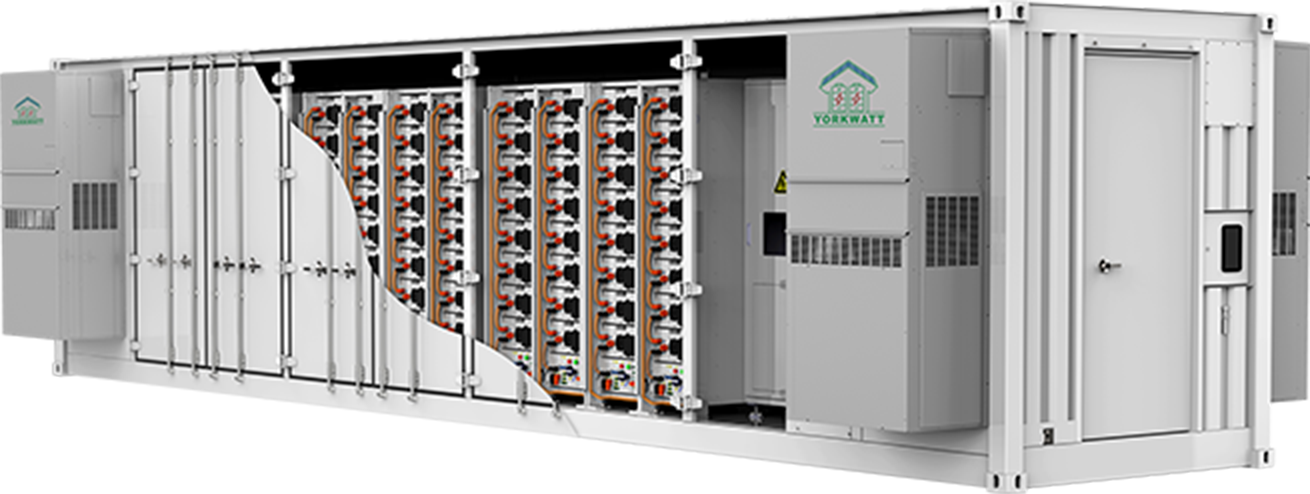

The container can be paired with PV, wind power, grid, etc. It is a large-scale, multi-purpose intelligent battery storage station
| Arrangement | 8 Battery boxes + 1 Combiner |
| Nominal Voltage | 1331.2V |
| Voltage Range | 1164.8V~1497.6V |
| Nominal Capacity | 280Ah |
| Nominal Power | 372.7kWh(@25℃，1C/1C) |
| Continuous Max Current | 280A |
| Working Temperature | Charge:0℃~55℃/ Discharge:-20℃~55℃ |
| Weight | ~3500kg |
| Dimension | 1300mm*1300mm*2280mm |
| Cooling Method | Liquid cooling |
- Lithium iron phosphate, the safest chemistry of all lithium battery types
- IP56 satisfies environmental requirements of outdoor applications
- C5 anti-corrosion secures a 20-year reliability
- An independent fire suppression system is built-in based on prevention-oriented fire suppression strategy
- CATL cell has a lifespan of up to 12,000 full cycles
- Integrated frequency conversion liquid cooling system limits the temperature difference among cells within 3℃, and prolongs the lifespan by 33%
- Modular design, compatible with inverters of voltage ranging from 600V to 1500V
- Independent liquid-cooling system ensures effective cooling
- Modular and compact structure saves footprint by 50%
- Preassembled before transportation, which lowers expenses of on-site installation and saves commissioning time
| Configuration | 12 racks + combiner + control |
| Rated Voltage | 512V |
| Rated Capacity | 6720Ah |
| Rated Energy | 3440kWh |
| Voltage Range | 448~576V |
| Ingress Rating | IP54/NEMA3R |
| Weight | 42t |
| Dimensions | 12192*2438*2896mm |
| Cycle Life | ≥6000 |
| Configuration | 12 racks + combiner + control |
| Rated Voltage | 1113.5V |
| Rated Capacity | 3360Ah |
| Rated Energy | 3741.69kWh |
| Voltage Range | 974.4~1252.8V |
| Ingress Rating | IP54 |
| Weight | 35t |
| Dimensions | 12192*2438*2896mm |
| Cycle Life | ≥6000 |
